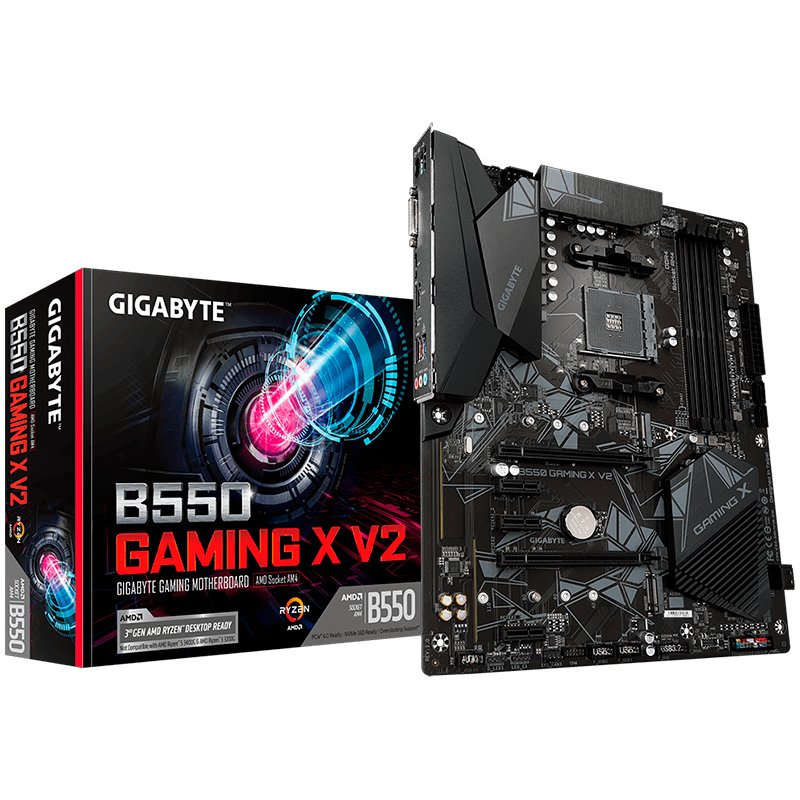

Matična ploča Gigabyte B550 Gaming X V2

CPU
– AMD AM4 Socket, podrška za Ryzen™ 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series procesore

Chipset
– AMD B550

Memorija
– 4 x DDR4 DIMM utora, maksimalno 128 GB (32 GB po DIMM-u)
– Podržane brzine: 4733(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
– Dual channel arhitektura
– ECC un-buffered DIMM podrška (ovisno o CPU-u)
– Non-ECC un-buffered DIMM podrška
– Podrška za XMP profile

Integrirana grafika
– 1 x DVI-D (max. 1920×1200@60 Hz)
– 1 x HDMI (HDMI 2.1, max. 4096×2160@60 Hz, HDCP 2.3, HDR)
– Maksimalno dijeljena memorija: 16 GB

Audio
– Realtek® Audio CODEC, HD Audio
– 2/4/5.1/7.1-kanalni izlaz

Mreža
– Realtek® GbE LAN (10/100/1000 Mbit)

Ekspanzija
CPU:
– 1 x PCIe x16 (Ryzen™ 5000/3000: PCIe 4.0 x16; Ryzen™ 5000 G/4000 G: PCIe 3.0 x16)
Chipset:
– 1 x PCIe x16 (PCIe 3.0 x2)
– 3 x PCIe x1 (PCIe 3.0 x1)

Pohrana
CPU:
– M.2_1 (2242/2260/2280/22110, SATA + PCIe 4.0 x4/x2 ili PCIe 3.0 x4/x2 ovisno o CPU-u)
Chipset:
– M.2_2 (2242/2260/2280/22110, SATA + PCIe 3.0 x4/x2)
– 4 x SATA 6Gb/s (RAID 0/1/10)

USB
CPU:
– 1 x USB 3.2 Gen2 Type-A (stražnji panel)
– 3 x USB 3.2 Gen1 (stražnji panel)
Chipset:
– 1 x USB Type-C (USB 3.2 Gen1, interni header)
– 2 x USB 3.2 Gen1 (interni header)
– 6 x USB 2.0 (2 stražnja + 4 interna)

Interni I/O
– 1 x 24-pin ATX
– 1 x 8-pin CPU_PWR
– 1 x CPU Fan header
– 1 x Water cooling CPU Fan header
– 3 x System Fan headera
– 2 x Addressable LED headera
– 2 x RGB LED headera
– 1 x CPU cooler LED/RGB header
– 2 x M.2 slotova
– 4 x SATA 6Gb/s
– 1 x Front panel header
– 1 x Front panel audio (AAFP)
– 1 x USB Type-C (USB 3.2 Gen1)
– 1 x USB 3.2 Gen1 header
– 2 x USB 2.0 headera
– 1 x TPM header
– 1 x Clear CMOS jumper

Stražnji I/O
– 2 x USB 2.0
– 1 x PS/2 combo port
– 1 x DVI-D
– 1 x HDMI
– 3 x USB 3.2 Gen1
– 1 x USB 3.2 Gen2 Type-A (crveni)
– 1 x Q-Flash Plus gumb
– 1 x RJ-45 LAN
– 3 x audio jacka

I/O kontroler
– iTE® I/O Controller Chip

H/W Monitoring
– Detekcija napona, temperature, brzine ventilatora
– Detekcija protoka vode
– Upozorenje na pregrijavanje
– Upozorenje na kvar ventilatora
– Kontrola brzine ventilatora

BIOS
– 256 Mbit AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Posebne značajke
– APP Center (EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer)
– Podrška za Q-Flash Plus i Q-Flash
– Xpress Install

Bundled Software
– Norton® Internet Security (OEM)
– LAN bandwidth management softver

OS podrška
– Windows® 11 / Windows® 10 64-bit

Form Factor
– ATX, 30.5 cm x 24.4 cm
