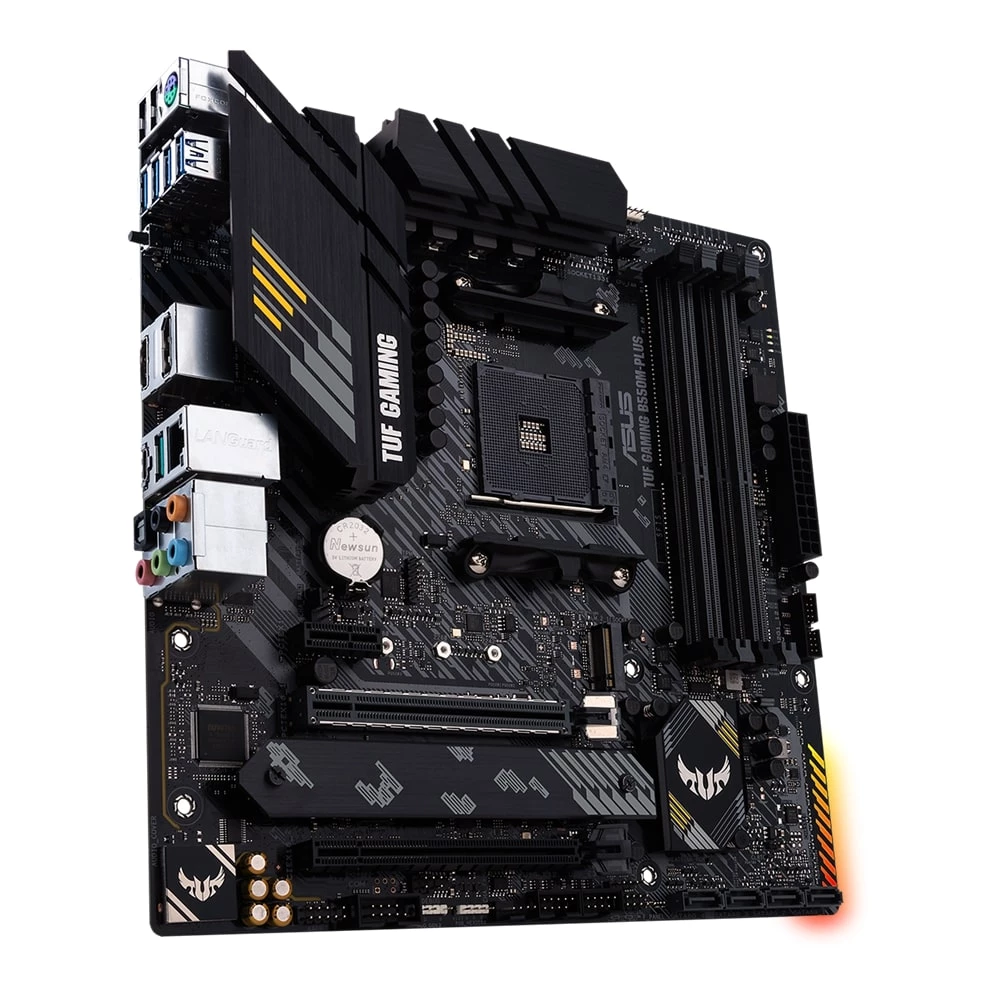

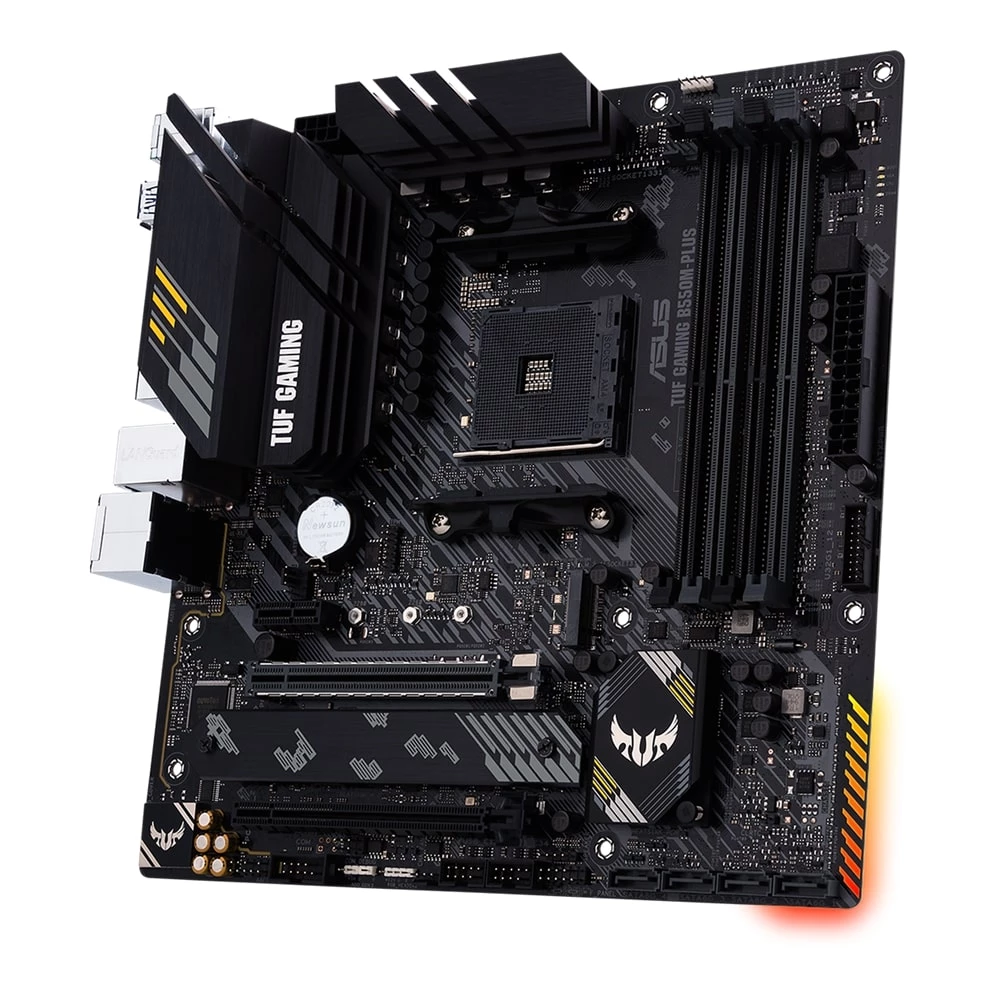

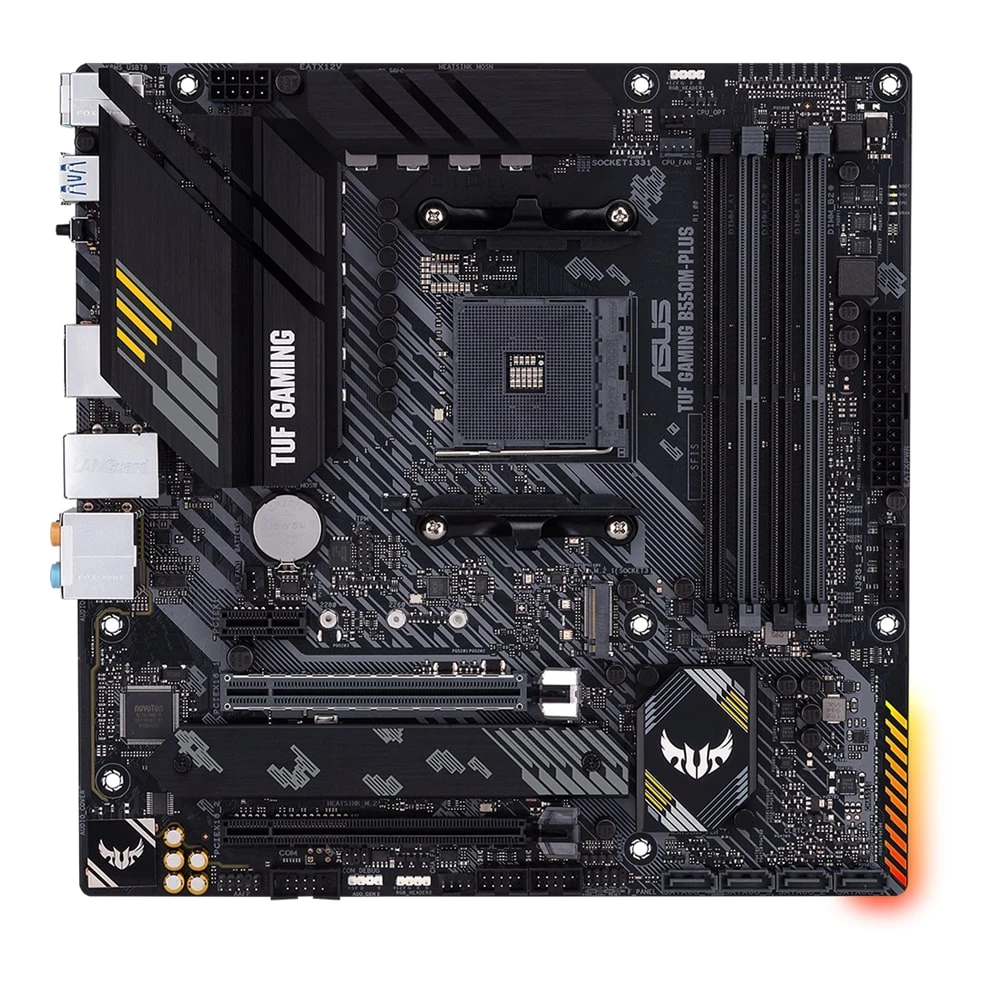

Matična ploča Asus TUF Gaming B550M-PLUS

CPU
– AMD AM4 Socket, podrška za Ryzen™ 5000 / 5000 G-Series / 4000 G-Series / 3000 seriju procesora

Chipset
– AMD B550

Memorija
– 4 x DDR4 DIMM utora, maksimalno 128 GB
– Podržane brzine: 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
– Dual channel arhitektura
– ECC podrška ovisi o CPU-u

Grafika
– 1 x HDMI 2.1 (max. 4K@60Hz)
– 1 x DisplayPort 1.2
* Ovisno o CPU-u

Multi-GPU podrška
– AMD 2-Way CrossFireX™

Ekspanzija
– 1 x PCIe 4.0 x16 (x16 mod, Ryzen™ 5000/3000)
– 1 x PCIe 3.0 x16 (x16 mod, chipset)
– 1 x PCIe 3.0 x16 (x4 mod)
– 1 x PCIe 3.0 x1

Pohrana
– 2 x M.2 slotova
– M.2_1: PCIe 4.0 x4 & SATA (2242/2260/2280)
– M.2_2: PCIe 3.0 x4 & SATA (2242/2260/2280/22110)
– 4 x SATA 6Gb/s
– RAID 0/1/10

Mreža
– Realtek® RTL8125B 2.5Gb Ethernet
– TUF LANGuard

Audio
– Realtek® ALC S1200A, 7.1-kanalni HD Audio
– Do 24-bit/192 kHz playback
– Jack-detection, multi-streaming, front panel jack-retasking
– Premium kondenzatori, audio shielding, zasebni PCB slojevi, audio cover
– DTS Custom za gaming slušalice
– Optički S/PDIF izlaz

USB
Stražnji (8 portova):
– 2 x USB 3.2 Gen2 (1 x Type-A + 1 x Type-C)
– 4 x USB 3.2 Gen1 (Type-A, jedan BIOS FlashBack™)
– 2 x USB 2.0
Prednji (6 portova):
– 2 x USB 3.2 Gen1
– 4 x USB 2.0

Softver
– Armoury Crate (Aura Creator, Aura Sync, AI Noise Cancelling Microphone)
– AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, EZ Update)
– TUF GAMING CPU-Z, AI Charger, Turbo LAN, DAEMON Tools, DTS Custom
– Norton Anti-virus (trial), WinRAR

UEFI BIOS
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– 256 Mb Flash ROM, AMI UEFI BIOS

Posebne značajke
– ASUS TUF PROTECTION (DIGI+ VRM, Overcurrent, ESD Guards, LANGuard, Overvoltage, SafeSlot, Steel I/O)
– ASUS Q-Design (Q-DIMM, Q-LED, Q-Slot)
– ASUS Thermal Solution (aluminijski M.2 heatsink)
– ASUS EZ DIY (BIOS FlashBack™, LED, ProCool)
– Aura Sync (RGB + Addressable Gen2)

Stražnji I/O
– 4 x USB 3.2 Gen1 (Type-A, jedan BIOS FlashBack™)
– 2 x USB 3.2 Gen2 (1 x Type-A + 1 x Type-C)
– 2 x USB 2.0
– 1 x PS/2 combo port
– 1 x DisplayPort
– 1 x HDMI
– 1 x RJ-45 LAN (2.5G)
– 5 x audio jackova
– 1 x optički S/PDIF izlaz
– BIOS FlashBack™ gumb

Interni I/O
– 1 x 24-pin ATX
– 1 x 8-pin CPU_PWR
– 1 x CPU Fan header
– 1 x CPU OPT Fan header
– 2 x Chassis Fan headera
– 2 x M.2 slotova
– 4 x SATA 6Gb/s
– 1 x USB 3.2 Gen1 header (2 porta)
– 2 x USB 2.0 headera (4 porta)
– 2 x Aura RGB headera
– 1 x Addressable Gen2 header
– 1 x SPI TPM header
– 1 x COM port header
– 1 x S/PDIF Out header
– 1 x Front Panel Audio (AAFP)
– 1 x System Panel header
– 1 x Clear CMOS jumper
– 1 x Speaker header

Dodaci
– 2 x SATA kablova
– I/O shield
– M.2 gumeni paket
– M.2 vijci
– TUF GAMING naljepnica, certifikacijska kartica
– Support DVD
– User manual

OS podrška
– Windows® 10 64-bit

Form Factor
– micro-ATX, 24.4 cm x 24.4 cm
