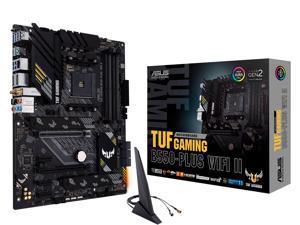

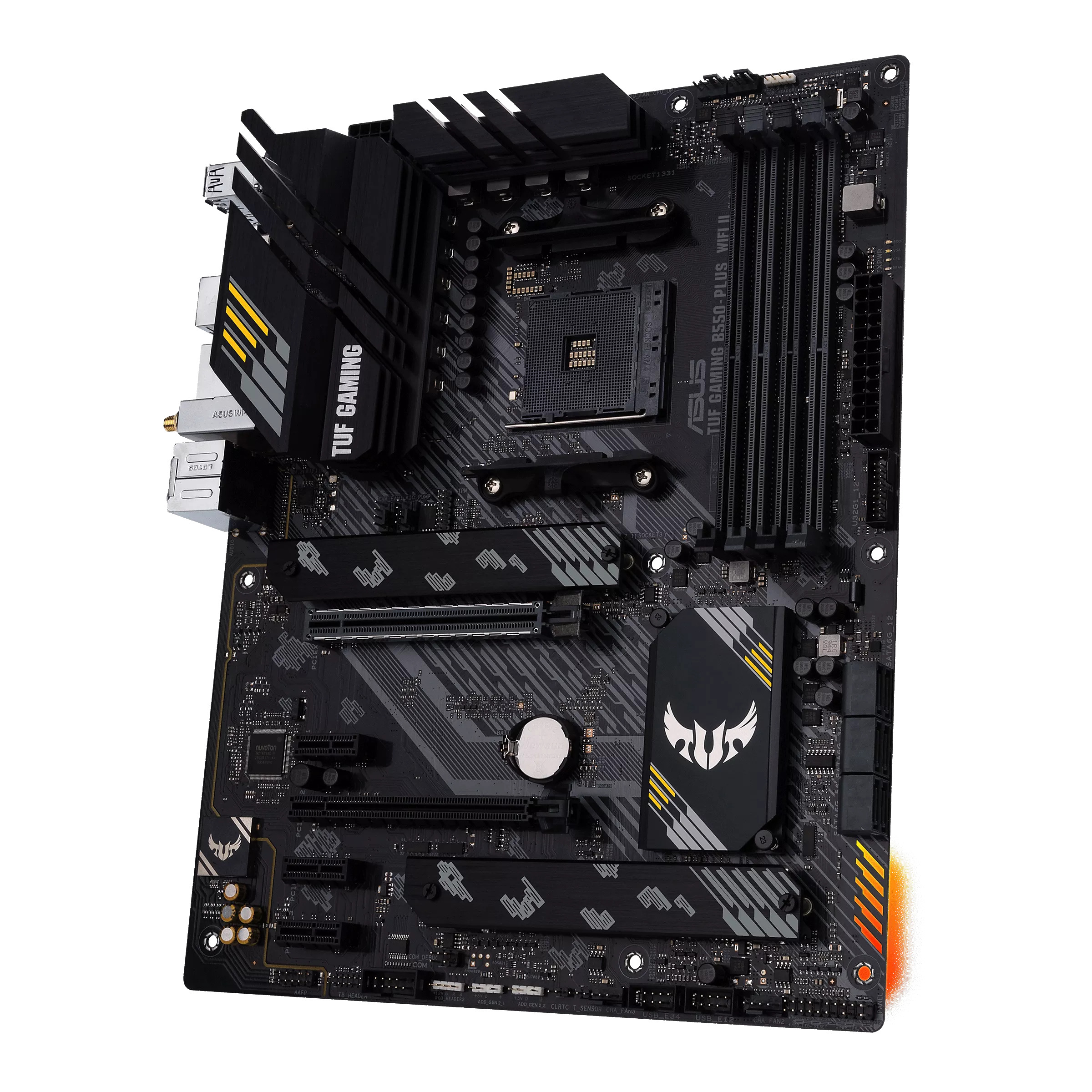

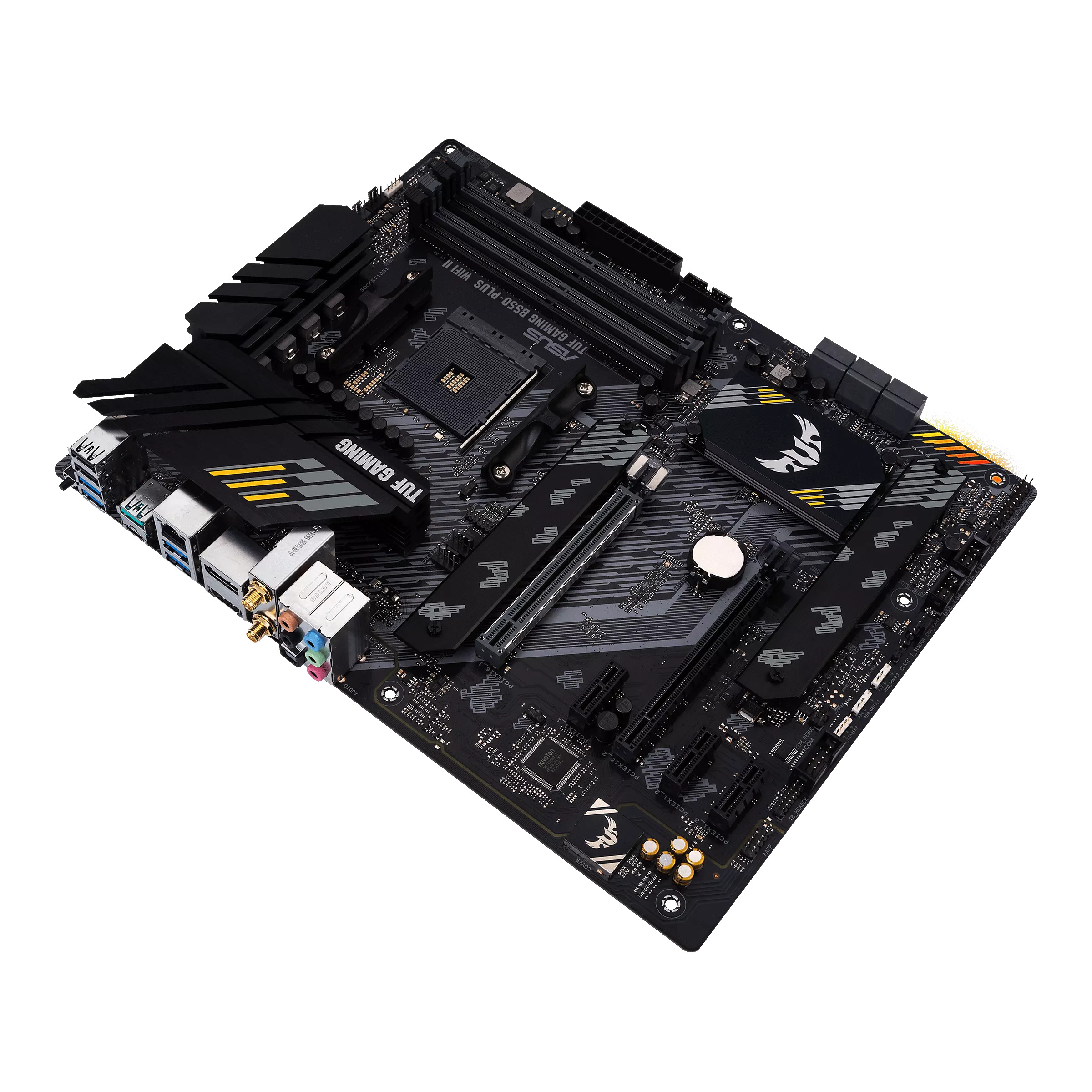

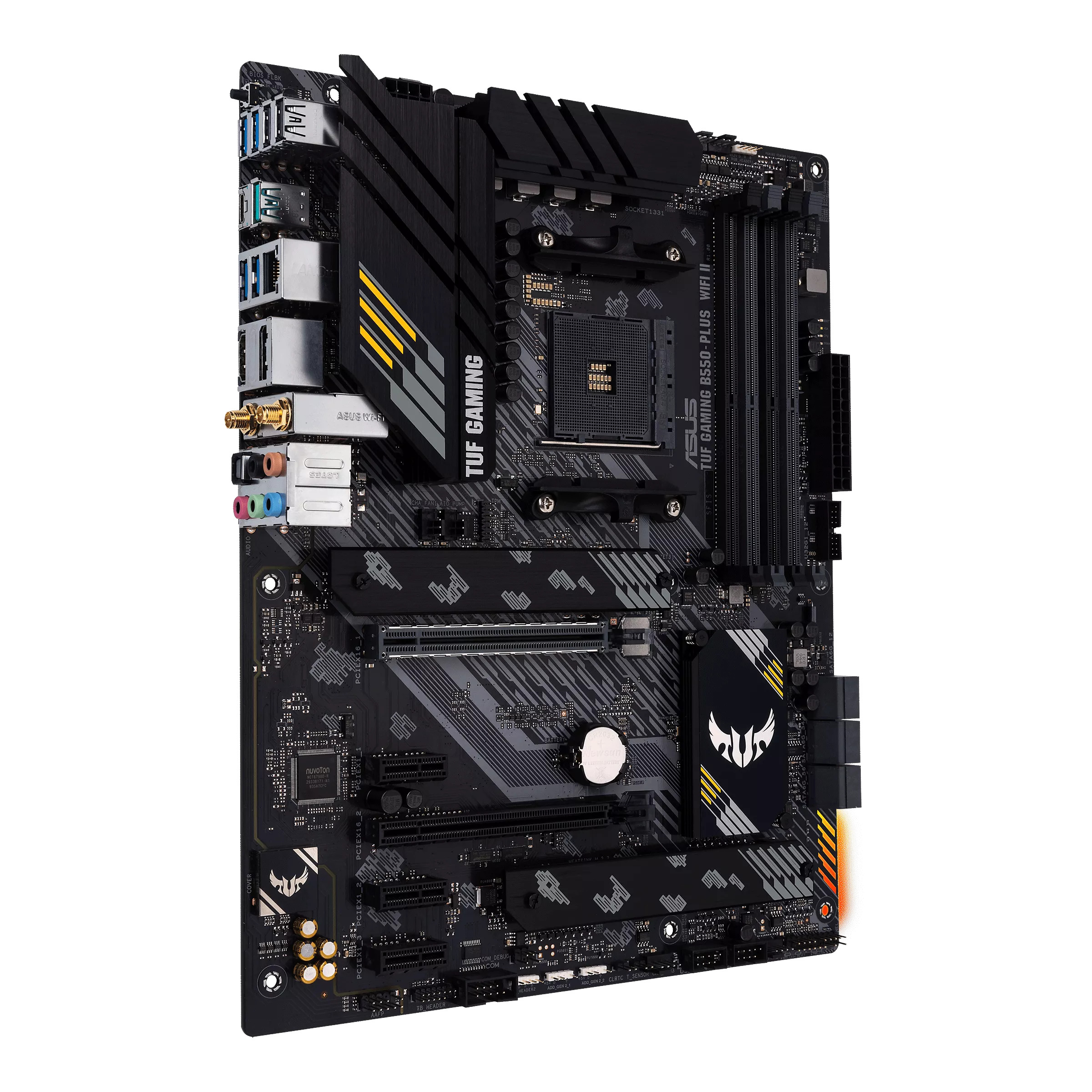

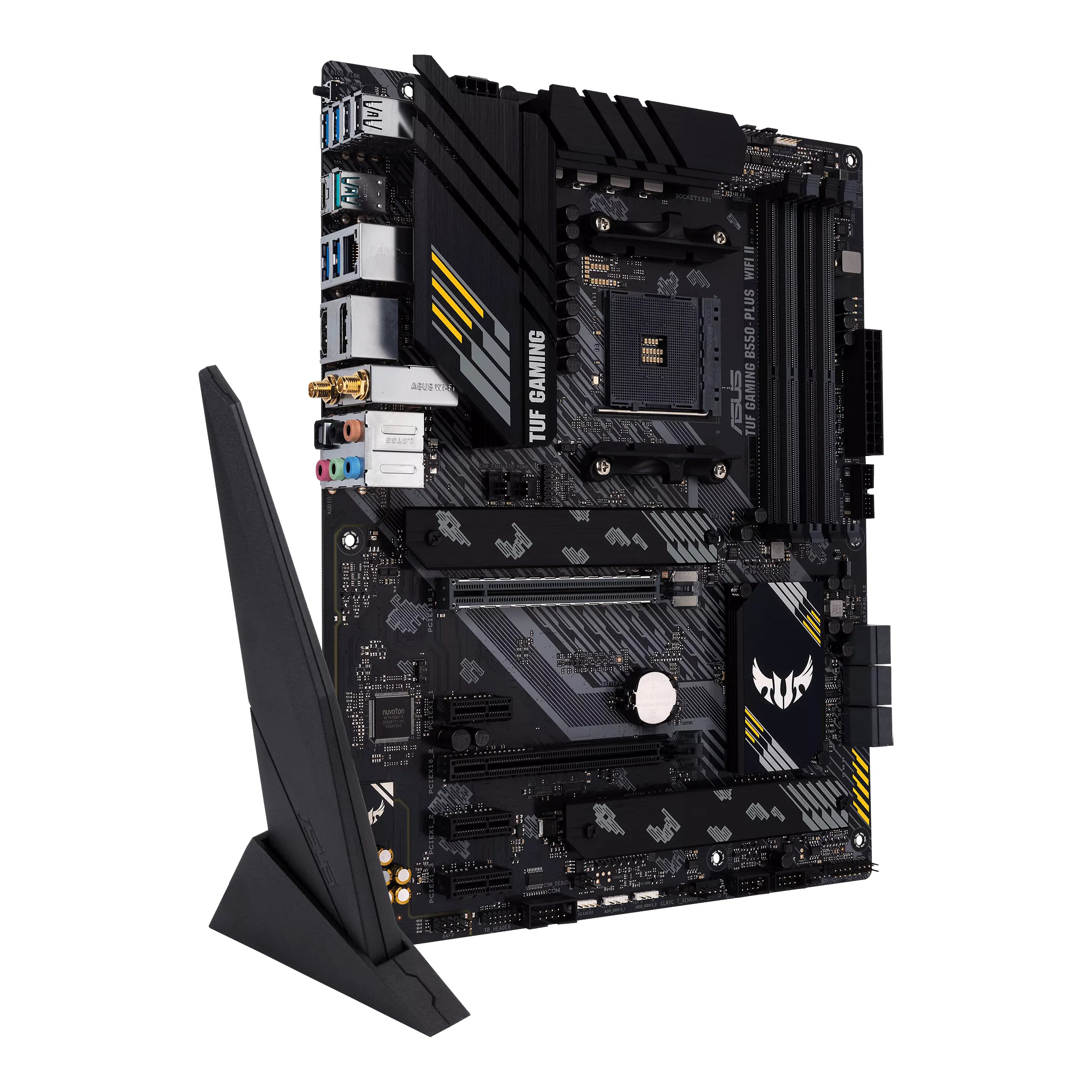

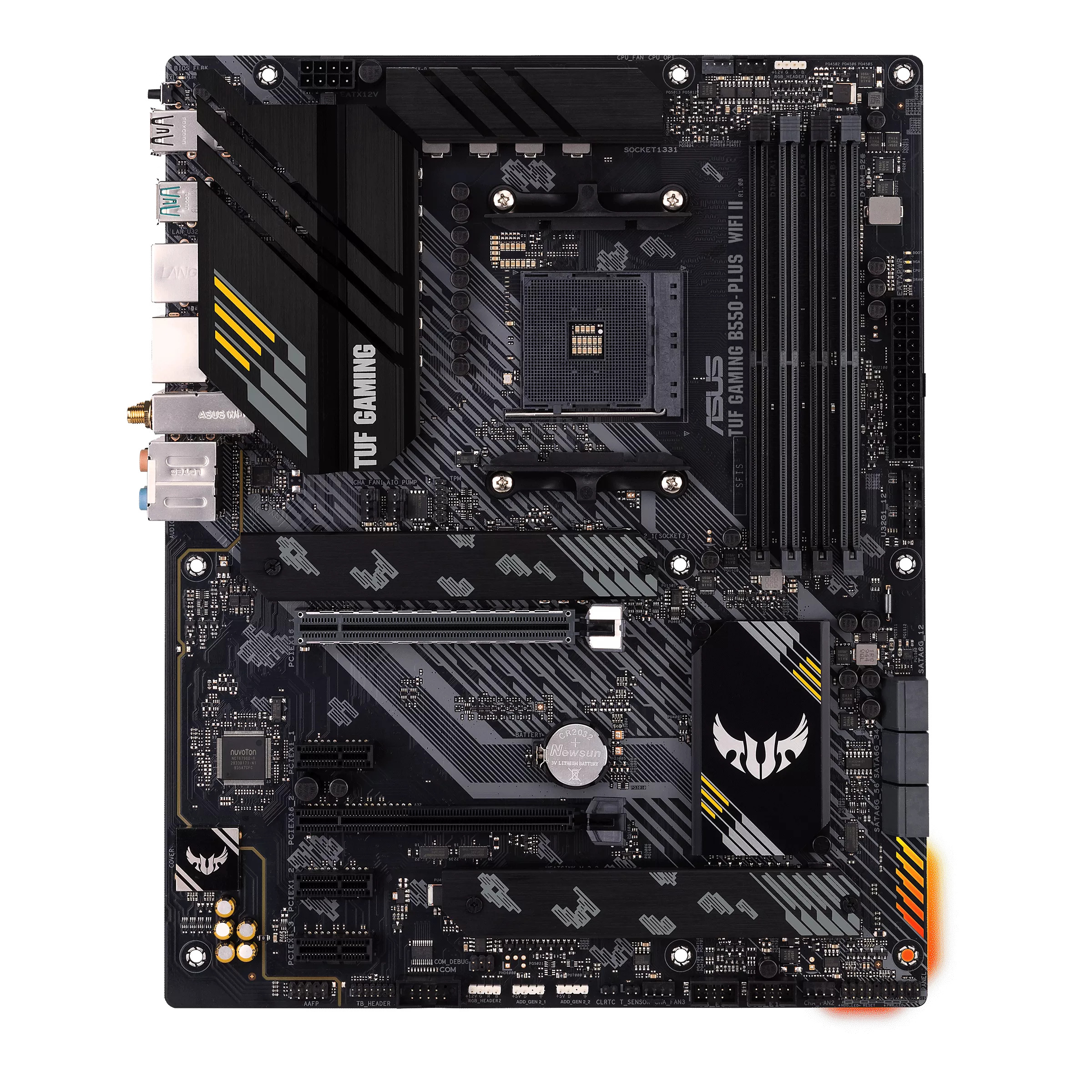

Matična ploča Asus TUF Gaming B550-Plus WiFi II

Model
TUF GAMING B550‑PLUS WIFI II

Procesor (CPU)
(vidjeti CPU Support List na asus.com)

Memorija
4 x DDR4 DIMM, maksimalno 128 GB
4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Dual‑channel
ECC podrška ovisi o CPU‑u
(kompatibilnost ovisi o CPU‑u i QVL listi)

Integrirana grafika
1 x DisplayPort 1.2
1 x HDMI 2.1 (4K@60 Hz)
(specifikacije ovise o CPU‑u)

Ekspanzijski utori
Ryzen 5000 / 3000:
– 1 x PCIe 4.0 x16 (x16)

Ryzen 5000G / 4000G:
– 1 x PCIe 3.0 x16 (x16)

AMD B550 chipset:
– 1 x PCIe 3.0 x16 (x4)*
– 3 x PCIe 3.0 x1*

(*PCIE 3.0 X16_2 radi x1 ako je bilo koji PCIe x1 utor zauzet)

Pohrana
Ryzen 5000 / 3000:
– M2_1: 2242/2260/2280/22110, PCIe 4.0 x4 & SATA

Ryzen 5000G / 4000G:
– M2_1: PCIe 3.0 x4 & SATA

AMD B550 chipset:
– M2_2: 2242/2260/2280/22110, PCIe 3.0 x4 & SATA*
– 6 x SATA 6Gb/s

(*M2_2 dijeli lane sa SATA6G_56 → SATA6G_56 se isključuje)

RAID
RAID 0 / 1 / 10

Bežična mreža i Bluetooth
Wi‑Fi 6 (802.11ax), 2×2
2.4 / 5 GHz
Bluetooth 5.2 (zahtijeva Windows 11)

USB priključci
Stražnji (8):
– 2 x USB 3.2 Gen2 (Type‑A + Type‑C)
– 4 x USB 3.2 Gen1 (Type‑A)
– 2 x USB 2.0

Prednji:
– USB 3.2 Gen1 header (2 porta)
– 2 x USB 2.0 headera (4 porta)

Audio
Realtek 7.1 HD Audio
Jack‑detection, multi‑streaming, front panel retasking
24‑bit / 192 kHz
Optical S/PDIF
Audio shielding
Premium kondenzatori
Odvojeni PCB slojevi
Audio cover

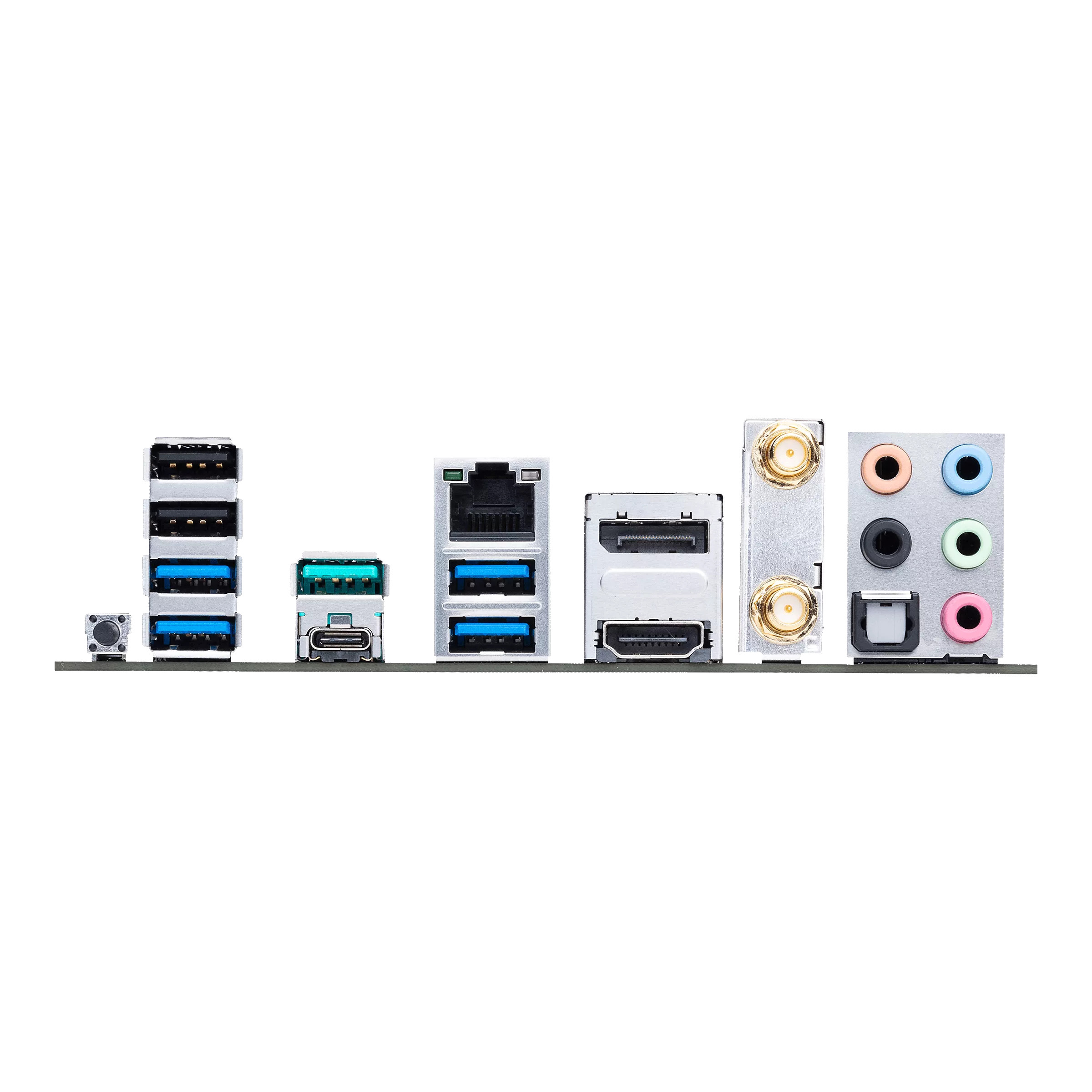

Stražnji I/O priključci
2 x USB 3.2 Gen2
4 x USB 3.2 Gen1
2 x USB 2.0
DisplayPort
HDMI
Wi‑Fi modul
Realtek 2.5Gb LAN
5 x audio jack
Optical S/PDIF
BIOS FlashBack

Interni I/O priključci
CPU fan
CPU OPT fan
AIO pump
3 x chassis fan
24‑pin ATX
8‑pin CPU Power
2 x M.2
6 x SATA
USB 3.2 Gen1 header
2 x USB 2.0 headera
2 x ARGB Gen2
2 x RGB
Clear CMOS
COM port
Front audio (AAFP)
SPI TPM
System panel
Thermal sensor
Thunderbolt header

Posebne značajke
ASUS TUF Protection
– DIGI+ VRM
– DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless‑steel back I/O

ASUS Q‑Design
– Q‑DIMM
– Q‑LED (CPU/DRAM/VGA/BOOT)
– Q‑Slot

ASUS Thermal Solution
– Aluminum M.2 heatsink

ASUS EZ DIY
– BIOS FlashBack
– ProCool

Aura Sync
– RGB headeri
– ARGB Gen2 headeri

Softver
Armoury Crate (Aura Sync, AI Noise Cancelation)
AI Suite 3
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
PC Cleaner
EZ Update
System Information
Aura Creator
TUF Gaming CPU‑Z
DTS Custom
Norton (60 dana)
WinRAR

UEFI BIOS
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
UEFI EZ Mode

BIOS
256 Mb AMI UEFI

Operativni sustav
Windows 10 64‑bit

Format ploče
ATX
30.5 × 24.4 cm

Socket
AM4
