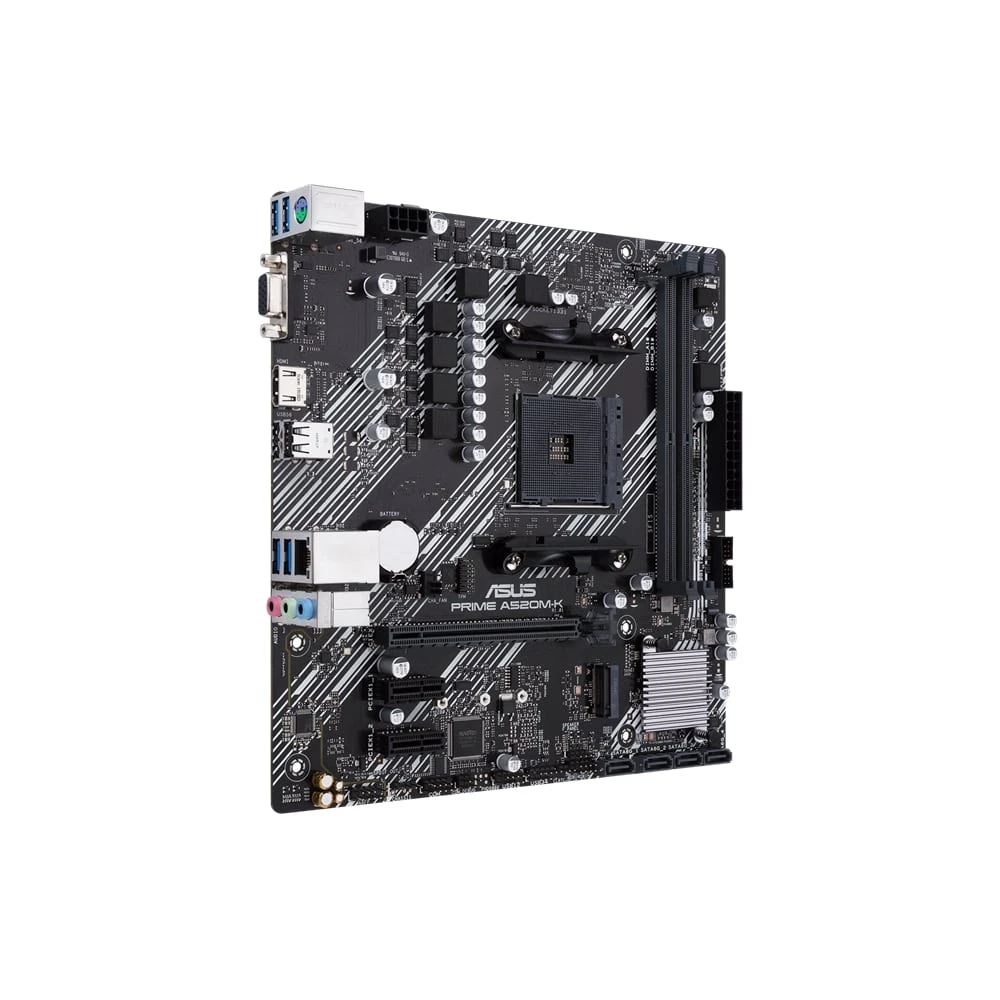

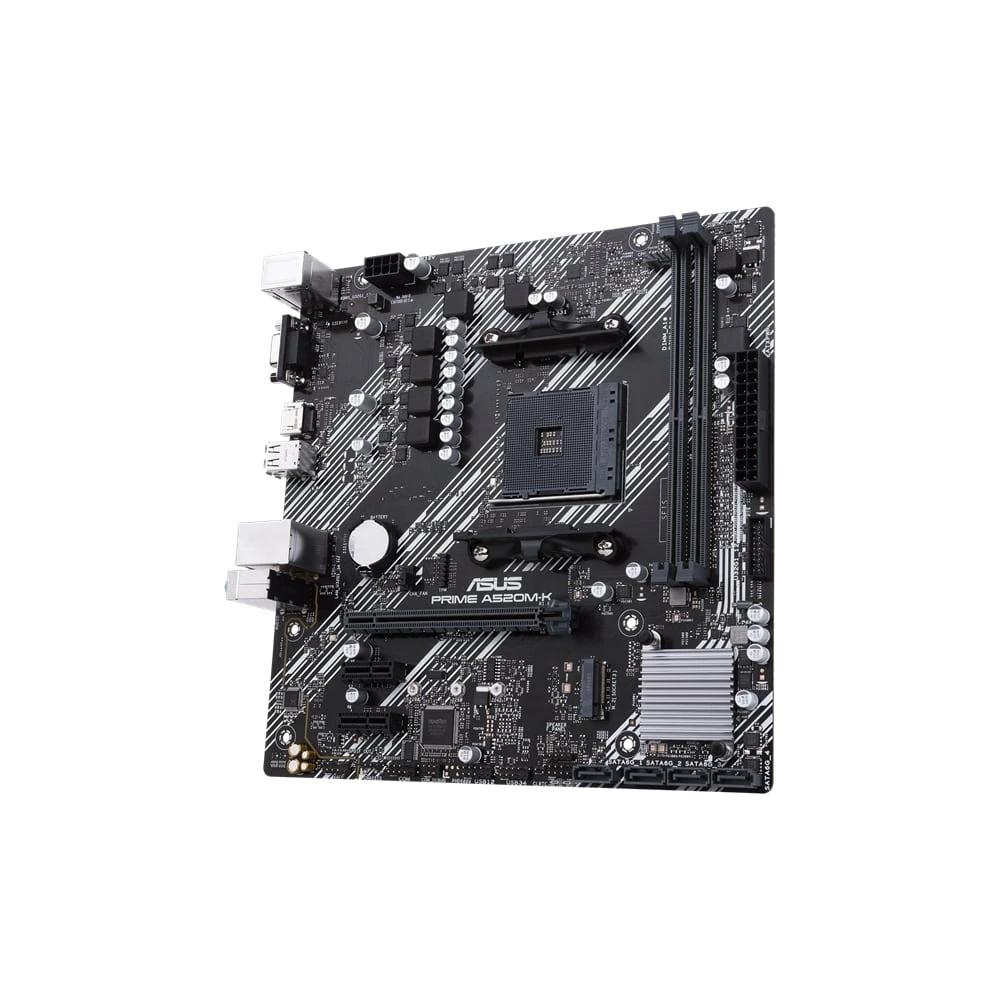

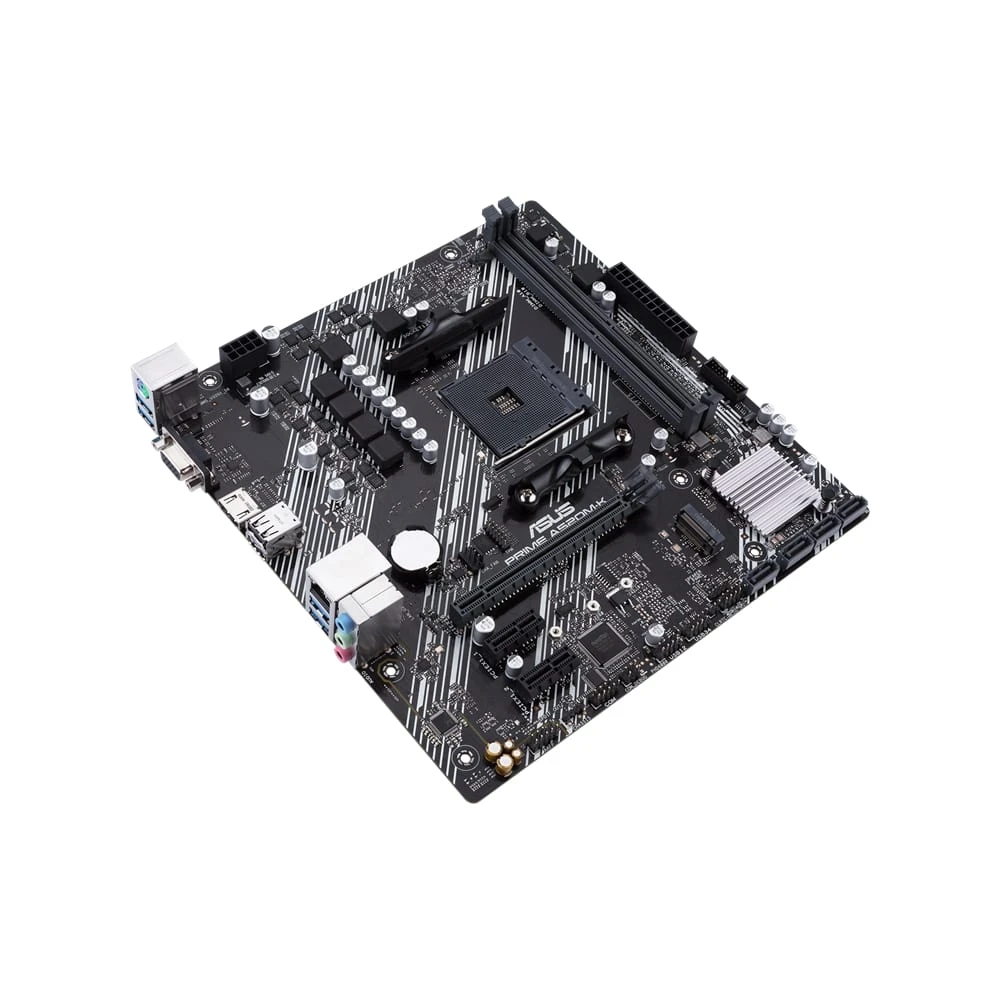

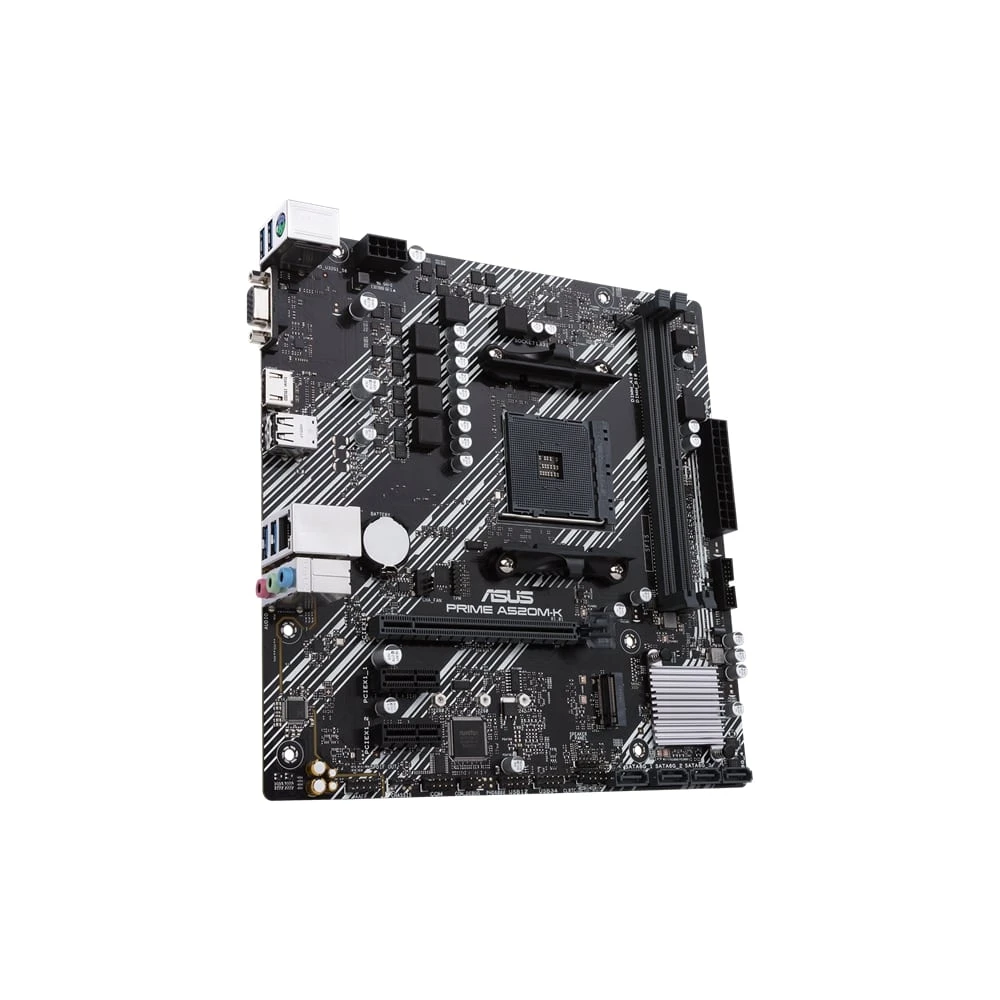

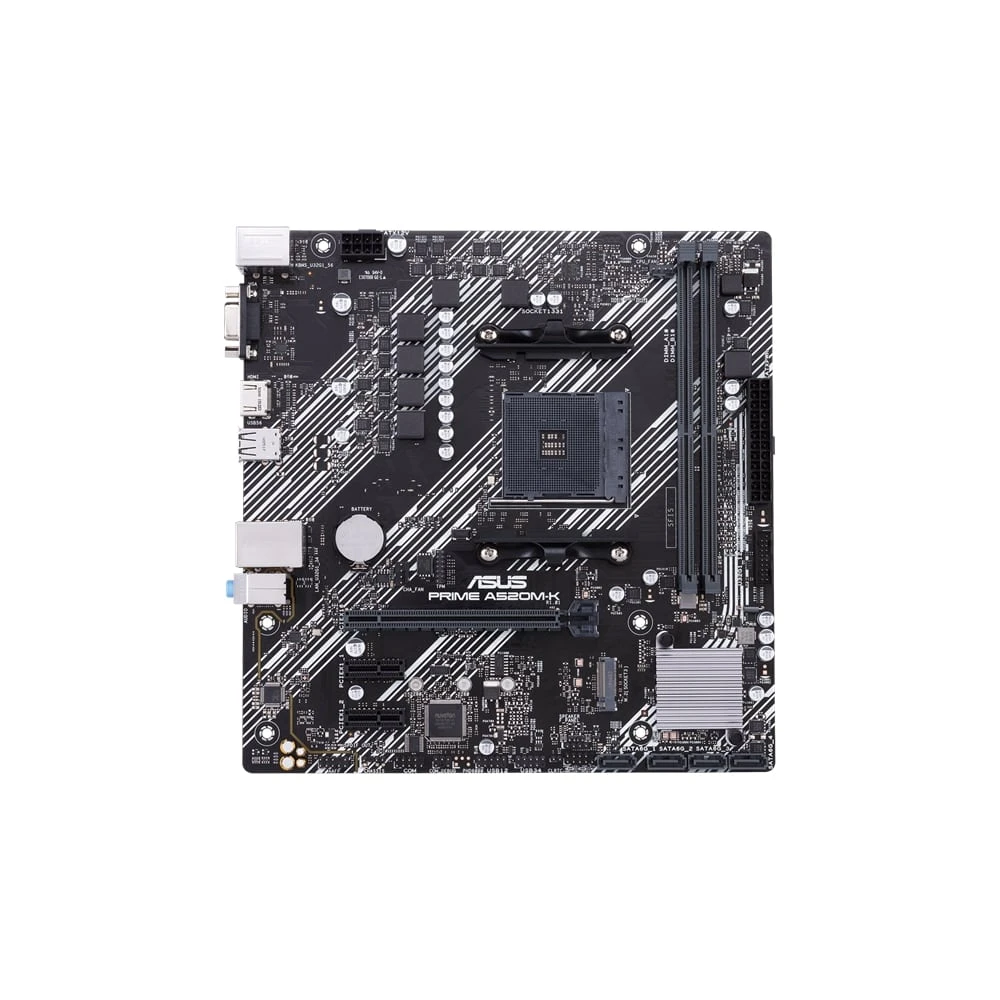

Matična ploča Asus Prime A520M-K

CPU
– AMD AM4 Socket, podrška za Ryzen™ 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series procesore

Chipset
– AMD A520

Memorija
– 2 x DDR4 DIMM utora, maksimalno 64 GB
– Podržane brzine: 5100(OC) / 4866(OC) / 4666(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
– Dual channel arhitektura
– ECC podrška ovisi o CPU-u

Grafika
– 1 x D-Sub
– 1 x HDMI 2.1 (max. 4K@60Hz)

Ekspanzija
– 1 x PCIe 3.0 x16 (x16 mod)
– 2 x PCIe 3.0 x1

Pohrana
– 1 x M.2 (2242/2260/2280, PCIe 3.0 x4 & SATA)
– 4 x SATA 6Gb/s
– RAID 0/1/10

Mreža
– Realtek® RTL8111H Gigabit LAN
– ASUS LANGuard

Audio
– Realtek® ALC887/897, 7.1-kanalni HD Audio
– Do 24-bit/192 kHz playback
– Jack-detection, multi-streaming, front panel jack-retasking
– Audio Shielding, zasebni PCB slojevi

USB
Stražnji (6 portova):
– 4 x USB 3.2 Gen1 (Type-A)
– 2 x USB 2.0 (Type-A)
Prednji (6 portova):
– 2 x USB 3.2 Gen1
– 4 x USB 2.0

Softver
– Armoury Crate
– AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, EZ Update)
– ASUS CPU-Z, AI Charger, DAEMON Tools
– Norton Anti-virus (trial), WinRAR

UEFI BIOS
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– 256 Mb Flash ROM, AMI UEFI BIOS

Posebne značajke
– ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core, Steel I/O)
– ASUS Q-Design (Q-DIMM, Q-Slot)
– ASUS Thermal Solution (aluminijski hladnjak)

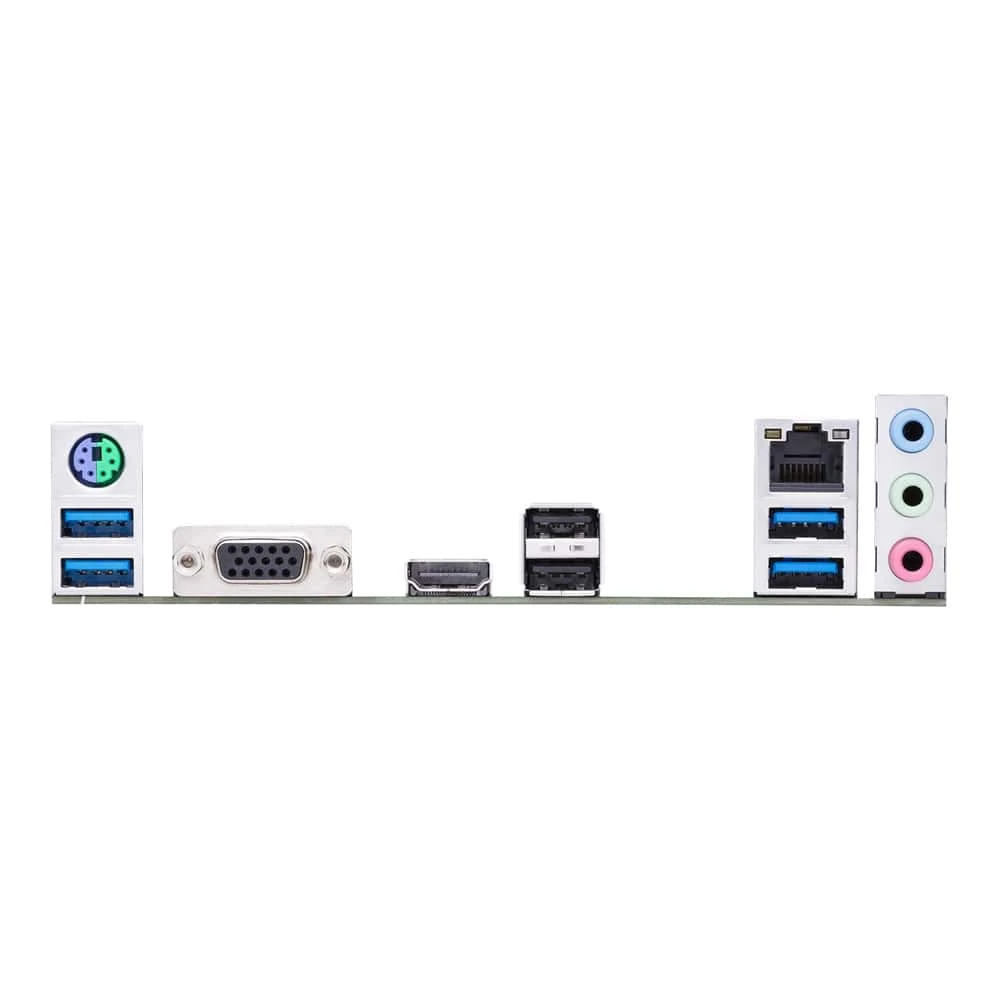

Stražnji I/O
– 4 x USB 3.2 Gen1 (Type-A)
– 2 x USB 2.0 (Type-A)
– 1 x PS/2 combo port
– 1 x D-Sub
– 1 x HDMI
– 1 x RJ-45 LAN
– 3 x audio jacka

Interni I/O
– 1 x 24-pin ATX
– 1 x 8-pin CPU_PWR
– 1 x CPU Fan header
– 1 x Chassis Fan header
– 1 x M.2 slot (PCIe 3.0 x4/SATA)
– 4 x SATA 6Gb/s
– 1 x USB 3.2 Gen1 header (2 porta)
– 2 x USB 2.0 headera (4 porta)
– 1 x SPI TPM header
– 1 x COM port header
– 1 x S/PDIF Out header
– 1 x Front Panel Audio (AAFP)
– 1 x System Panel header
– 1 x Clear CMOS jumper
– 1 x Speaker header

Dodaci
– 2 x SATA kablova
– I/O shield
– M.2 vijci
– Support DVD
– User manual

OS podrška
– Windows® 10 64-bit

Form Factor
– micro-ATX, 22.6 cm x 22.1 cm
